HandySCAN 3D: Black Series



Specifications

Technical Specifications: The HandySCAN 3D line-up is the reference in portable metrologygrade 3D scanner. Optimized to meet the needs of design, manufacturing and metrology professionals, the BLACK Series provides the most effective and reliable way to acquire accurate 3D measurements of physical objects anywhere. It is also 40% more accurate with a volumetric accuracy of 60m/m, and 25 times faster than former generation.

What are the applications?: HandyScan 3D can be used at any time at all stages of product lifecycle management.
- Maintenance, repair and overhaul (MRO)
- Documentation
- Concept design & prototyping
- Testing, simulation & analysis
- CAD Design
- Quality control

Accuracy: 0.025mm (0.0009 in)

Measurement rate: 1,300,000 measurements/s

Part size range (recommended): 0.05 - 4 m (0.15 - 13 ft)


Creaform HandySCAN 3D: Black Series

When accuracy meets portability. Introducing the HandySCAN 3D laser scanners.

The HandySCAN 3D™ handheld scanners of new generation have been optimized to meet the needs of product development and engineering professionals on the lookout for the most effective and reliable way to acquire 3D measurements of physical objects.

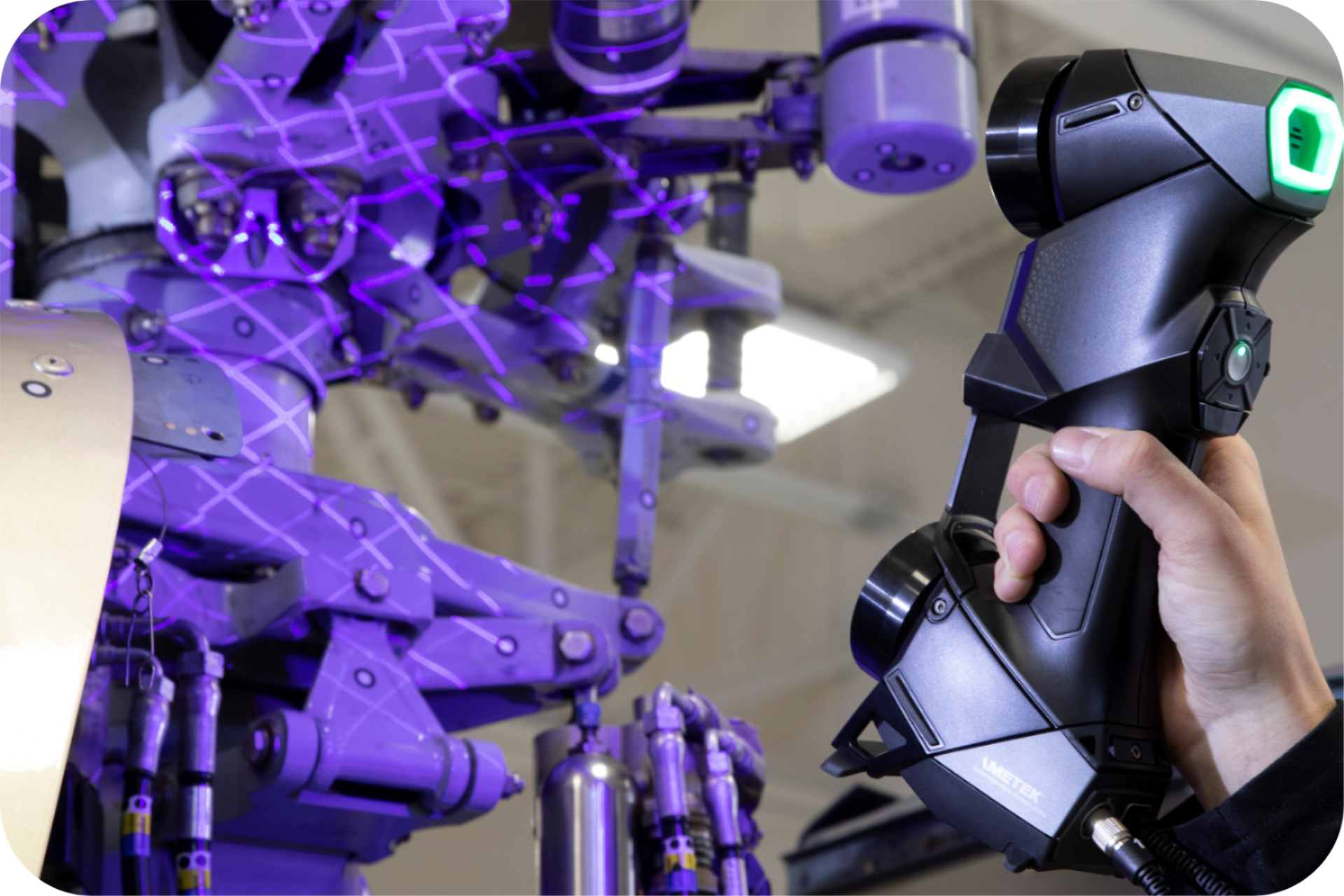

HandyScan Black


Benefits

Creaform’s flagship metrology-grade scanners underwent a complete re-engineering, building on its core assets. They are now more portable and they are faster at delivering accurate and high resolution 3D scans while remaining overly simple to use. Yet, it is their true portability that has changed the rules and set a whole new trend in the 3D scanning market.

HandyScan Black

NEW FEATURES

 • 25 times faster than the previous generation

 • 40% more accurate

 • Improved ergonomy:

 ⇒ 35% lighter

 ⇒ 50% smaller

  Greater freedom of movement

 ⇒ Multi-function buttons for easier interaction with the software





Accurate, Reliable & High-Resolution 3D Measurements

The HandySCAN 3D | BLACK Series delivers accurate, high-resolution and repeatable results, regardless of the measurement setup quality and no matter the user experience. Featuring dynamic referencing, both the scanner and part can move during measurement and still provide an accurate and highquality scan.

 • Accuracy

   ⇒0.025 mm (0.0009 in)

 • Volumetric accuracy

   ⇒ 0.020 + 0.040 mm/m (0.0008 in + 0.0005 in/ft)

 • Reliable acceptance test

   ⇒ Based on VDI/VDE 2634 part 3 standard

   ⇒ ISO 17025 accredited laboratory

 • High resolution for fine details

 • Integrated photogrammetry

  ⇒ High accuracy on large measurements with volumetric accuracy optimization

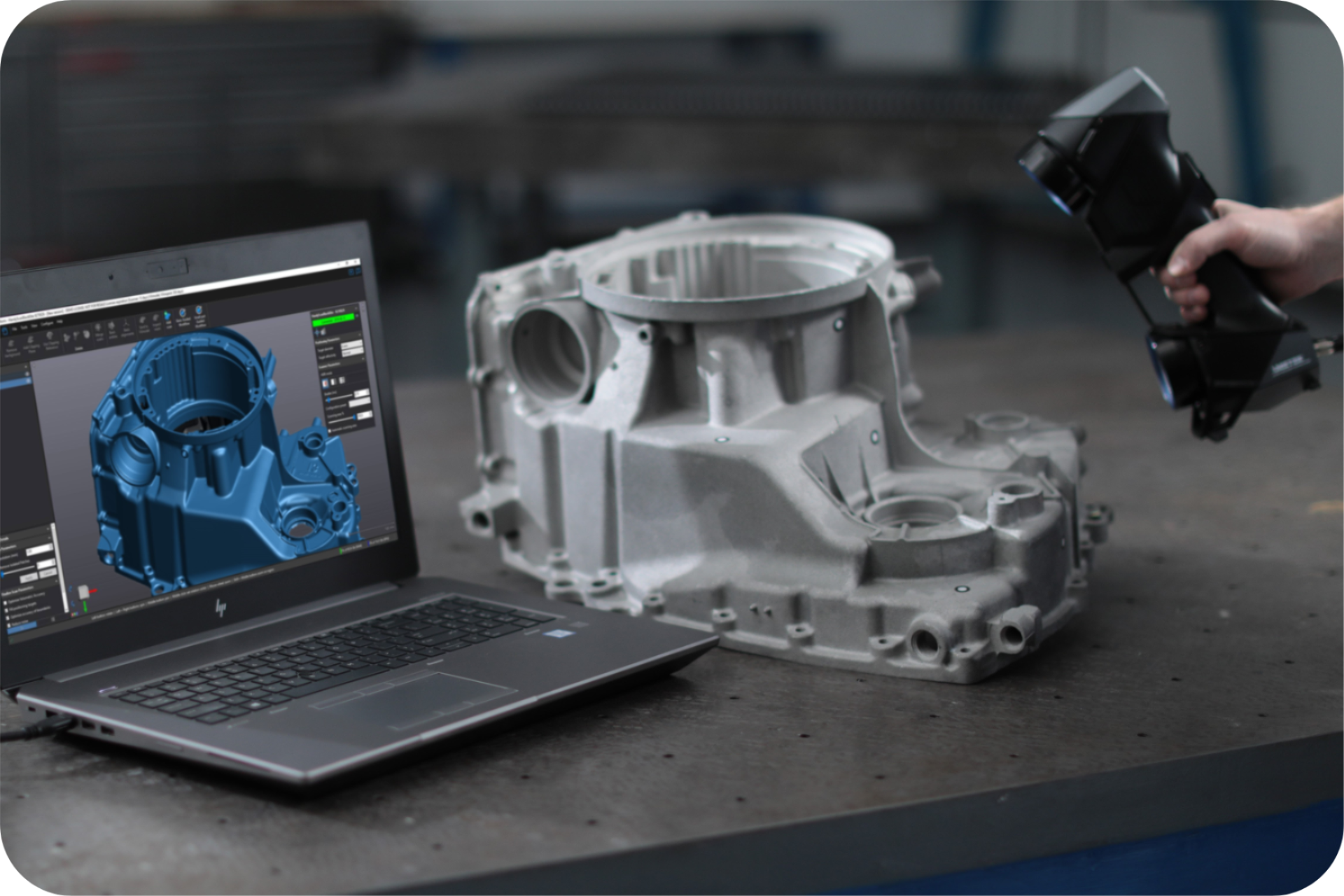

HandySca Black


Portability

This handheld 3D scanner is a stand-alone device that does not require a tripod nor any external tracking device to operate. Fitting in a small suitcase, it can be brought anywhere and used in any environmental conditions without affecting its performance.

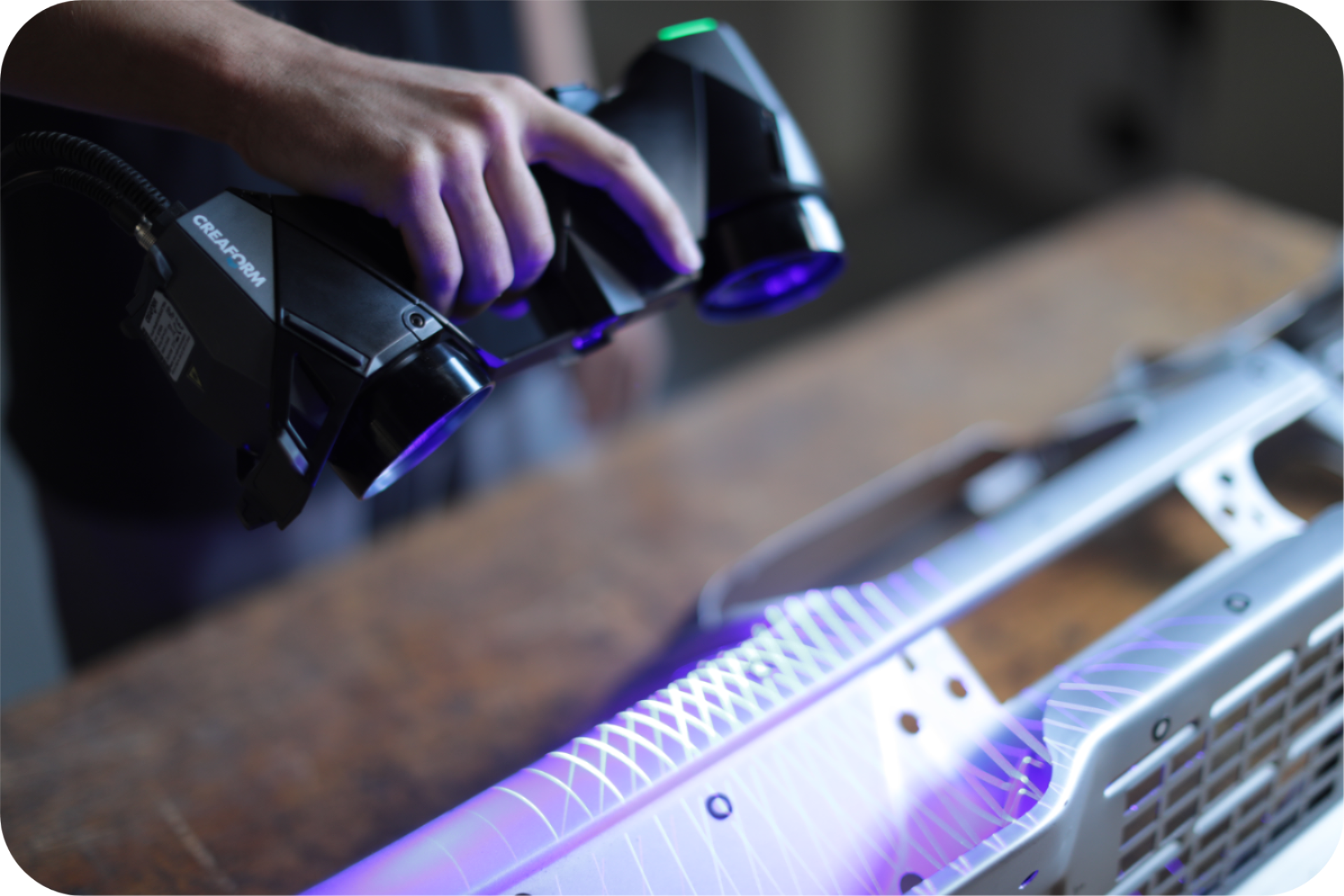

HandyScan Black

 • Lightweight

    ⇒0.94 kg (2.1 lb)

 • Self-positioning with dynamic referencing

 • Fits into a suitcase

 • Take it anywhere you need

Faster 3D Scanning Process

The HandySCAN 3D | BLACK Series scanners features multiple laser crosses and an automatic mesh generation, enabling a faster workflow from the set-up to the scan and then to the file!

 • Ready-to-use files

 • High measurement rate

   ⇒Up to 1,300,000 measurements/s

 • Large scanning area of 11 laser crosses

 • Quick setup

   ⇒Up-and-running in less than 2 minutes

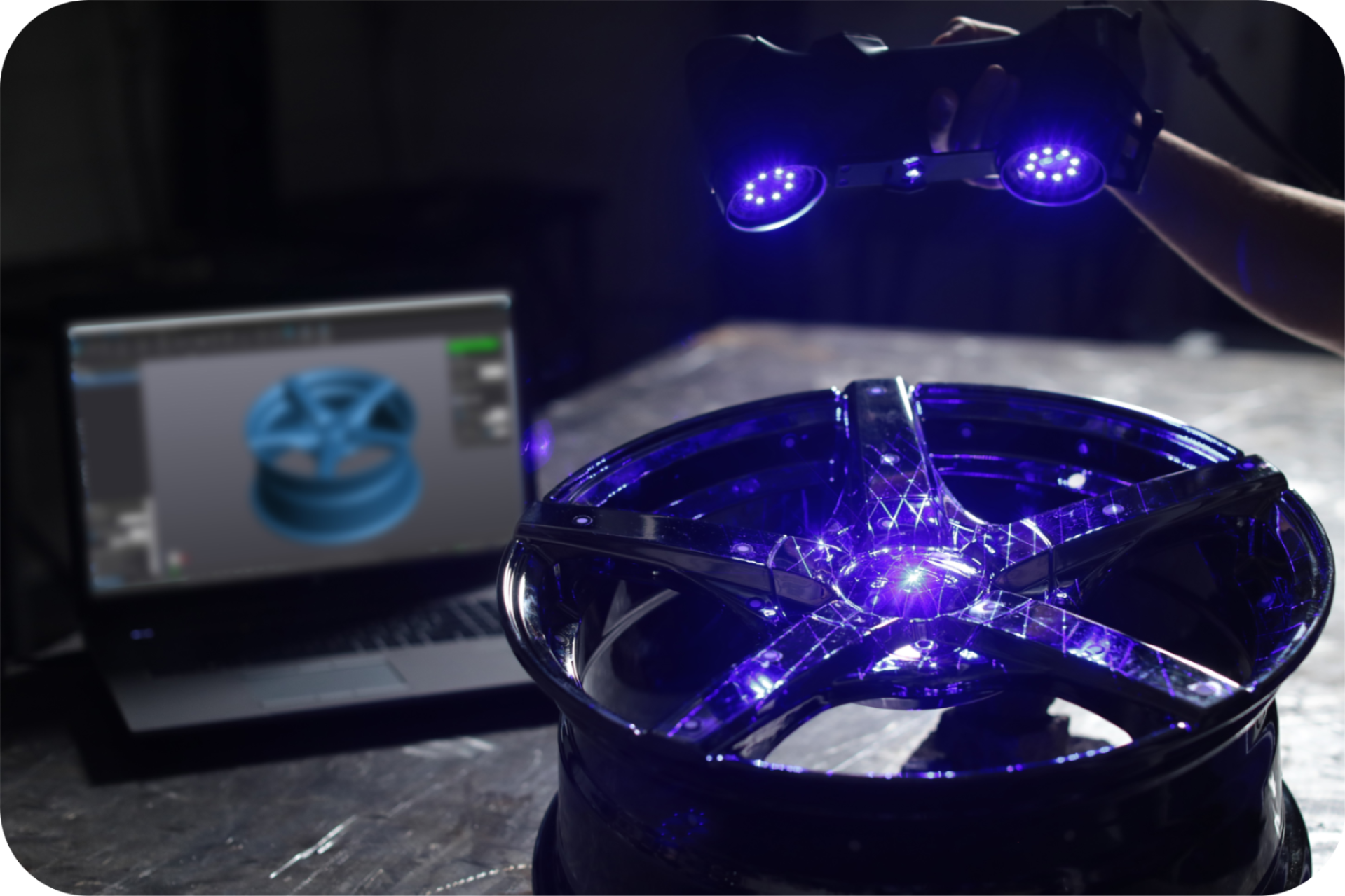

HandyScan Black - rim

Simplicity and Versatility

With its user-friendly interface and ergonomic design, this 3D measurement solution is easy-to-use and has a short learning curve. Its versatility gives the opportunity to scan various object sizes and surface types in real time—all with the same device.

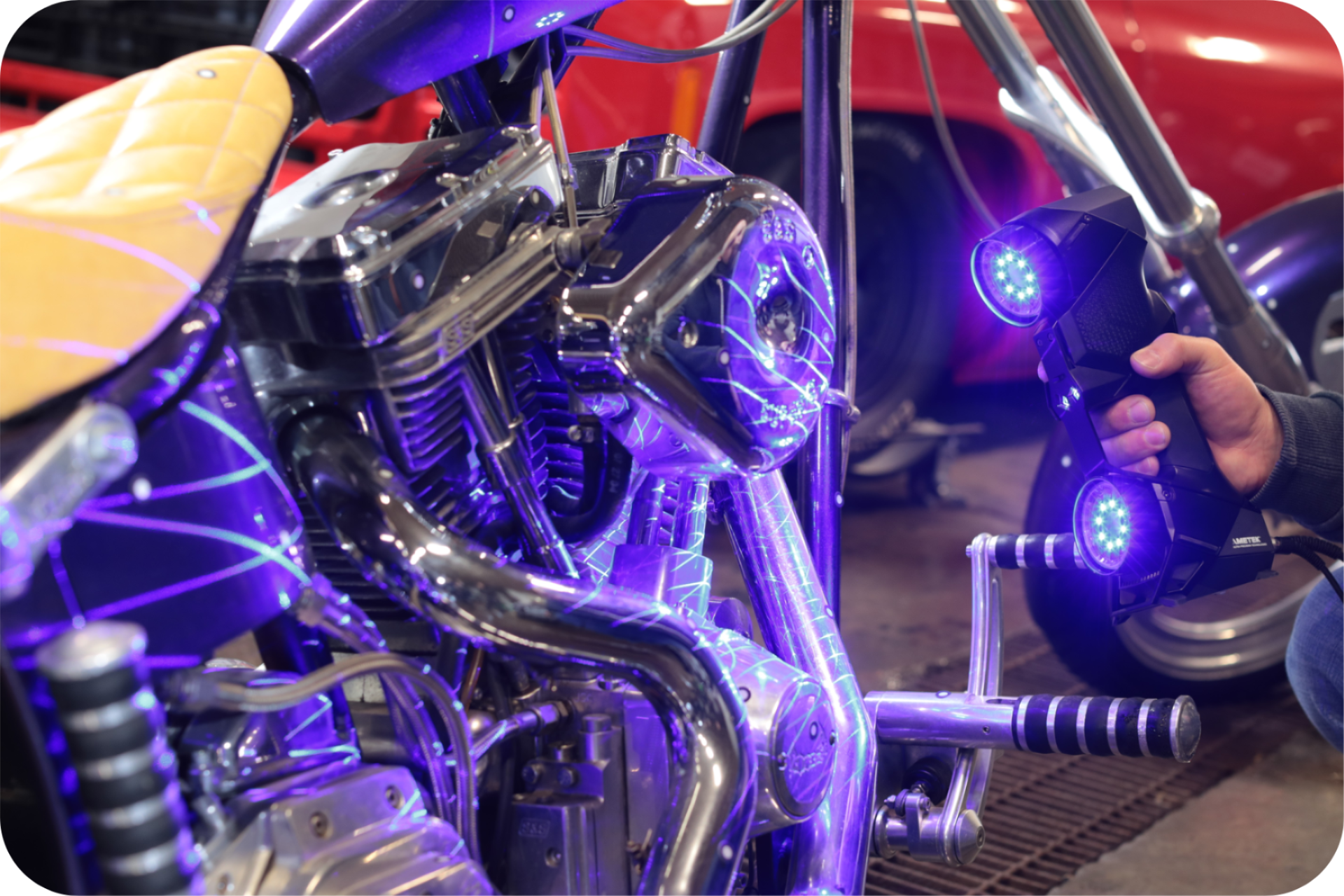

HandyScan Black - automotive

 • Simple user interface and real-time mesh visualization

 • Masters complex and difficult surfaces

 • One device for all shapes and sizes

 • Plug and play

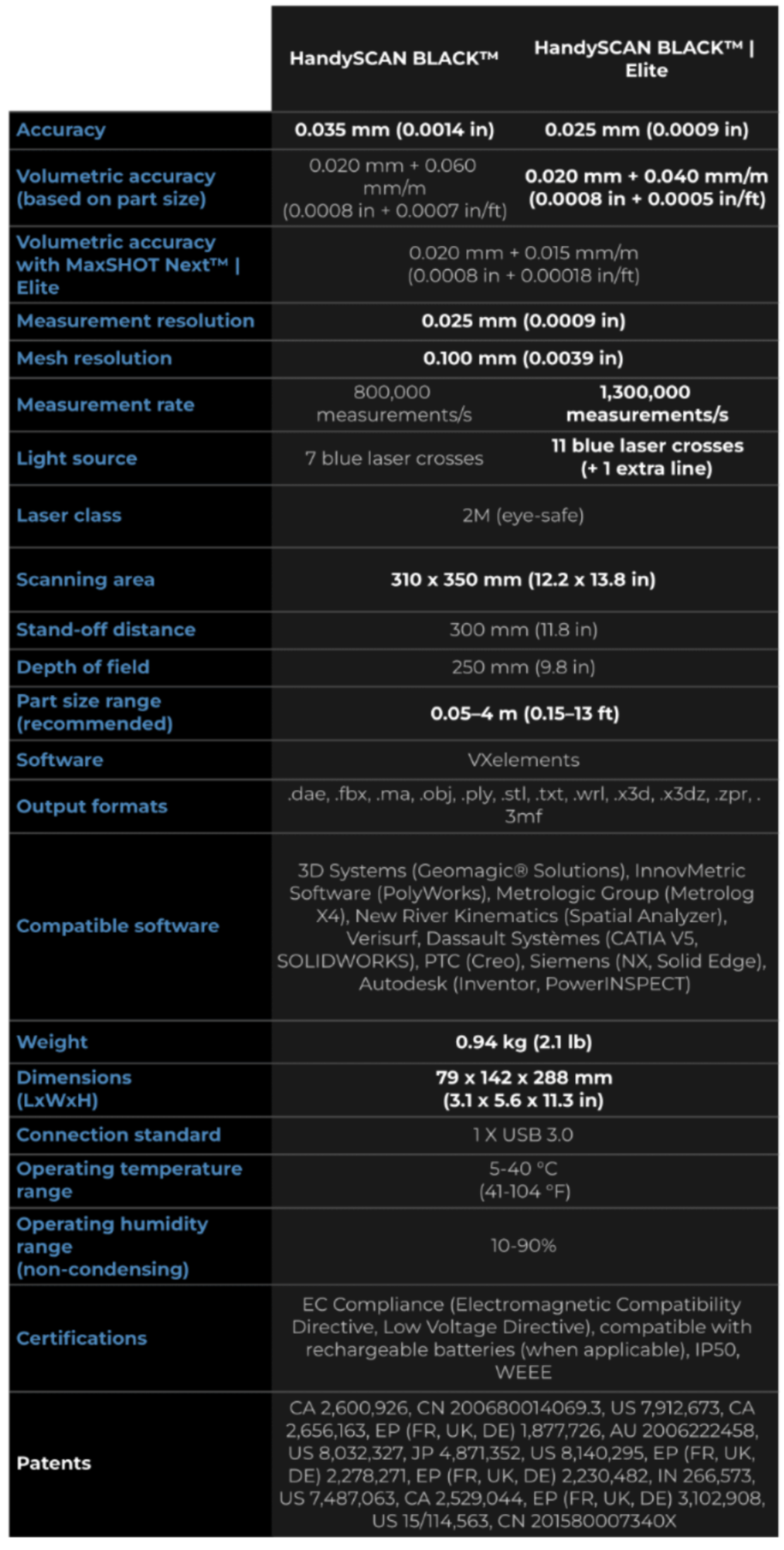

Technical Specifications

Table of Specifications
gardening

Creaform HandySCAN 3D: Black Series

When accuracy meets portability. Introducing the HandySCAN 3D laser scanners.

The HandySCAN 3D™ handheld scanners of new generation have been optimized to meet the needs of product development and engineering professionals on the lookout for the most effective and reliable way to acquire 3D measurements of physical objects.



Benefits

Creaform’s flagship metrology-grade scanners underwent a complete re-engineering, building on its core assets. They are now more portable and they are faster at delivering accurate and high resolution 3D scans while remaining overly simple to use. Yet, it is their true portability that has changed the rules and set a whole new trend in the 3D scanning market.

gardening

NEW FEATURES

 • 25 times faster than the previous generation

 • 40% more accurate

 • Improved ergonomy:

 ⇒ 35% lighter

 ⇒ 50% smaller

  Greater freedom of movement

 ⇒ Multi-function buttons for easier interaction with the software





Accurate, Reliable & High-Resolution 3D Measurements

The HandySCAN 3D | BLACK Series delivers accurate, high-resolution and repeatable results, regardless of the measurement setup quality and no matter the user experience. Featuring dynamic referencing, both the scanner and part can move during measurement and still provide an accurate and highquality scan.

flowers

 • Accuracy

   ⇒0.025 mm (0.0009 in)

 • Volumetric accuracy

   ⇒ 0.020 + 0.040 mm/m (0.0008 in + 0.0005 in/ft)

 • Reliable acceptance test

   ⇒ Based on VDI/VDE 2634 part 3 standard

   ⇒ ISO 17025 accredited laboratory

 • High resolution for fine details

 • Integrated photogrammetry

  ⇒ High accuracy on large measurements with volumetric accuracy optimization



Portability

This handheld 3D scanner is a stand-alone device that does not require a tripod nor any external tracking device to operate. Fitting in a small suitcase, it can be brought anywhere and used in any environmental conditions without affecting its performance.

carrots

 • Lightweight

    ⇒0.94 kg (2.1 lb)

 • Self-positioning with dynamic referencing

 • Fits into a suitcase

 • Take it anywhere you need

Faster 3D Scanning Process

The HandySCAN 3D | BLACK Series scanners features multiple laser crosses and an automatic mesh generation, enabling a faster workflow from the set-up to the scan and then to the file!

strawberries

 • Ready-to-use files

 • High measurementrate

   ⇒Up to 1,300,000 measurements/s

 • Large scanning area of 11 laser crosses

 • Quick setup

   ⇒Up-and-running in less than 2 minutes



Simplicity and Versatility

With its user-friendly interface and ergonomic design, this 3D measurement solution is easy-to-use and has a short learning curve. Its versatility gives the opportunity to scan various object sizes and surface types in real time—all with the same device.

carrots

 • Simple user interface and real-time mesh visualization

 • Masters complex and difficult surfaces

 • One device for all shapes and sizes

 • Plug and play

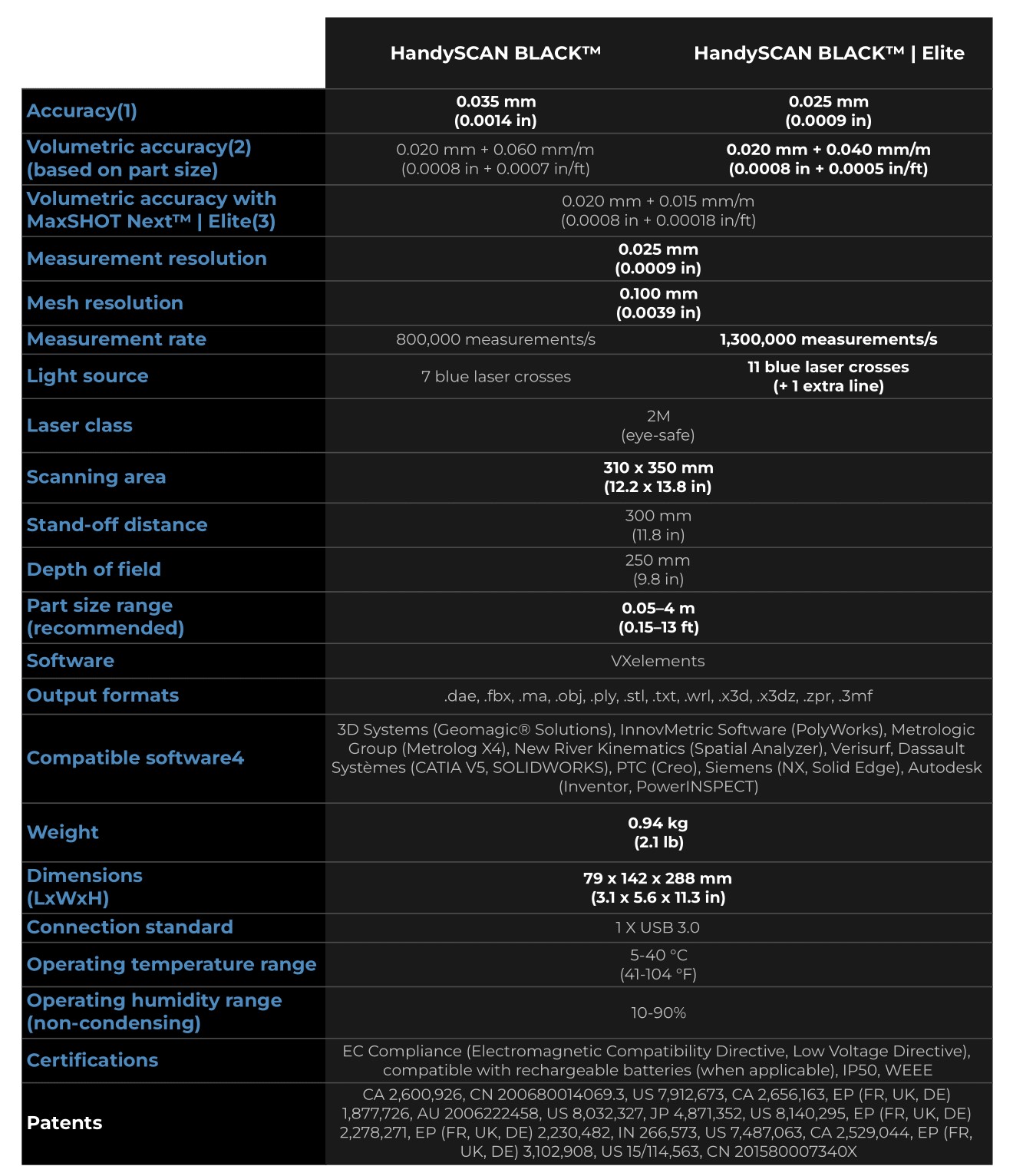

Technical Specifications
