Ilogic Scripting

iLogic is a rule-based design automation tool built into Autodesk Inventor. It allows users to automate repetitive design tasks, enforce standards, and create smart, customizable models using logic rules written in a simplified VB.NET-like scripting language.

Common uses:

Automating model configurations (sizes, features, components)
Controlling assemblies with user inputs (like dropdowns, forms)
Generating files, drawings, or BOMs automatically
Enforcing naming, material, or dimension standards

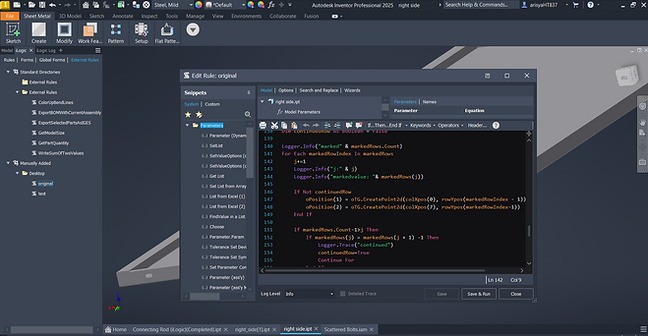

Ilogic script

Why iLogic?

Efficiency: Reduce manual modeling and errors by automating tasks.
Customization: Let users create "smart templates" that adapt to inputs.
Scalability: Generate many product variants quickly (great for configurable products).
Integration: Can tie into external data (Excel, databases) and manage output.
